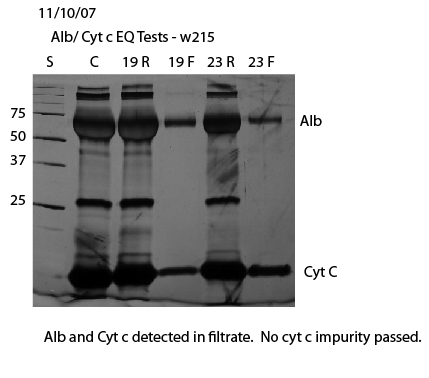

This is a 12% SDS-PAGE gel of the human albumin (alb) and cytochrome c (cyt c) EQ tests. Both alb and cyt c passed through the membrane, while the cyt c impurity (middle band) and alb impurities (high bands) did not.
The next step? I’d like to try an albumin/IgG separation with membranes of similar pore sizes.
19 – Position (-2,4)
23 – Position (-1,-1)
S=Standards, C=Control, R=Retentate, F=Filtrate
Last week, Lingyun and I deposited 30nm SiO2 onto both sides of wafers 335, 341 and 345. Unfortunately, these wafers weren’t in too good shape, so there are only a few intact slits without pinholes. I then took a few chips from each wafer and did RTP (800C, 5 min, Ar). I’m doing discoloration studies…
In order to prevent membrane breaking, I rebored the acrylic plates for larger bolts and added compression springs to regulate the clamping force on the chips. I also flushed the devices at the vivarium where the animal experiments take place. There were still assembled in the basement lab but transported dry. I flowed IPA followed by…
AlineFlowBottomChannelSup AlineFlowBottomChannel
The goal of this project is to determine the viability of PEG as a structural support for large area nano porous membranes. This would enable lift-off vs. the current method of etching through the wafer. The ideal properties are that the structure can withstand an aqueous solution for many days without peeling off or dissolving,…
Test of Binding/ Unbinding (Carrie and Barrett): Test to see if we can successfully bind Human IgG to the protein A beads and then remove it with buffer B. After ordering the new human IgG and protein A beads, I have been working on a higher-quality analysis of the binding and dissociating of the IgG…
I recently tested W510X and W600 described by Dave here for air permeability, rhodamine diffusion, and burst pressure. No air permeability was observed; even a sample with one very small pinhole (W600 800C anneal) only had a permeability of 11 cc/atm*cm2*s. To verify the lack of pores I performed rhodamine diffusion on the W600 700C…
