Maryna told me the UV/ozone cleaner did not work (the blue light in front of the chamber did not light up) when she was working with Dave today. I quickly checked the machine and it is actually working properly.

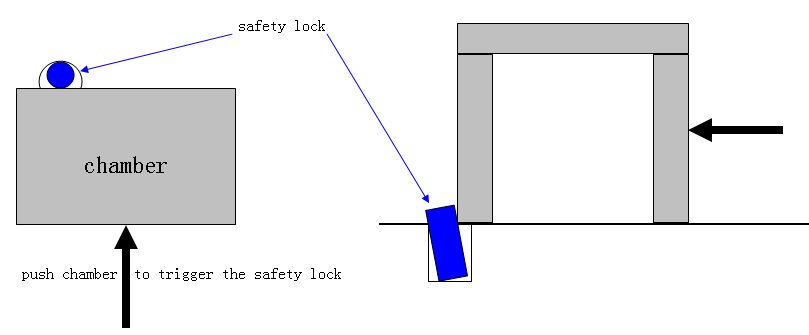

The trick is to make sure you trigger the “safety lock” behind the chamber before you switch on the lamp. The “safety lock” should be in contact with the inner wall of the hole, as indicated in the schematic below.
