Just to double check the numbers I calculated on Tuesday I ran some wet-wet trials with 100K and 300K Nanoseps. Based on the wet-dry results we would expect that the permeability for the 100K Nanosep would be higher than that of the 100K Microcon. It goes without saying that the 300K Nanosep would also be higher.

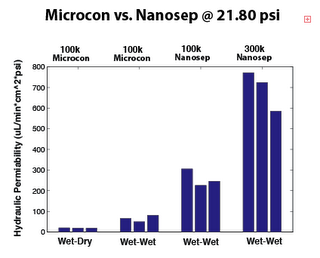

As shown, the results are similar in trend to those obtained in the wet-dry tests.
