UV Ozone treated W404 sample testing (benchtop) :

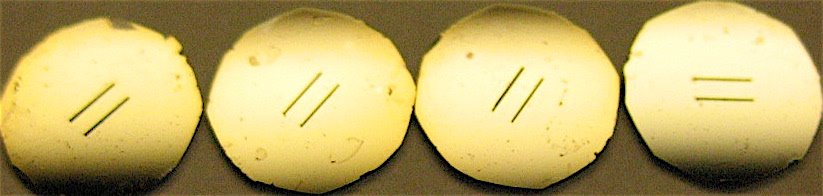

In EGM

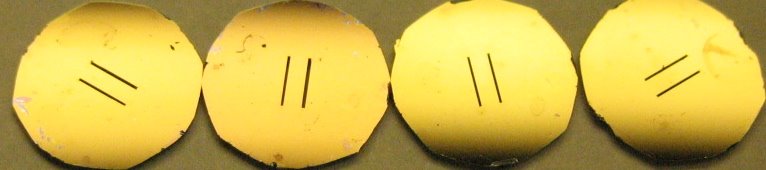

In L15

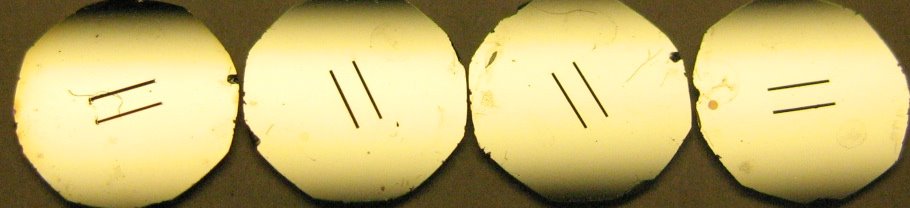

In DMEM
In each row, the first two samples (from left) are UV Ozone treated whereas the next two are not.
It can be observed that there is no significant difference in discoloration due to the treatment after ~15 hrs.
Note: The starting color of the chip is not blue for W404 (shown before).
It looks something like:
