I used 100kD Millipore Celllulose membranes to separate the 2 C-dot particles. The results are similar to those I’ve obtained with pnc-Si; the 10nm particles pass while the 30nm ones do not.

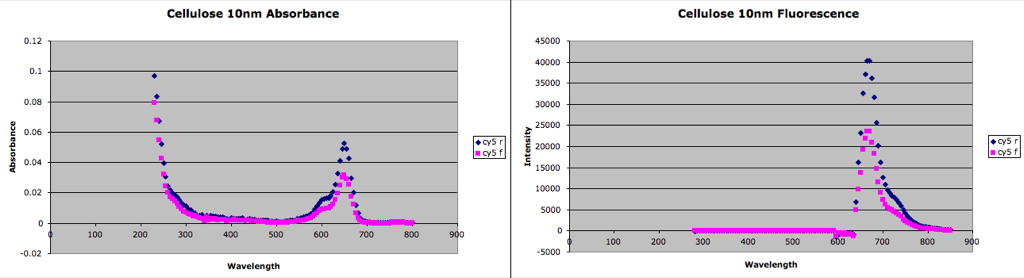

Cy5 10nm particles:

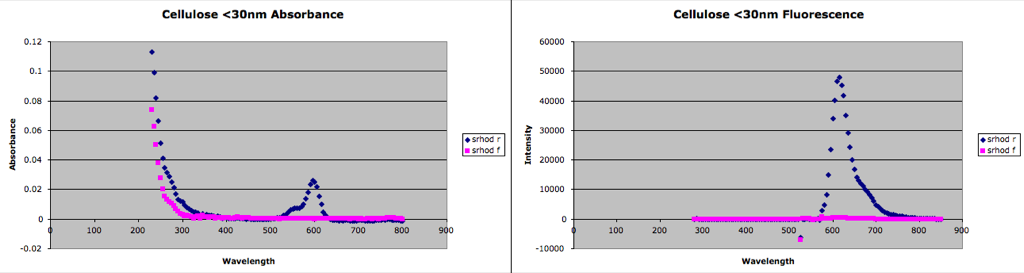

Sulforhodamine 30nm particles:
Here are the sieving ratios:
| Particle | Ratio |
| 10nm (abs) | .60 |
| 10nm (fluor) | .59 |
| 30nm (abs) | .02 |
| 30nm (fluor) | .01 |
