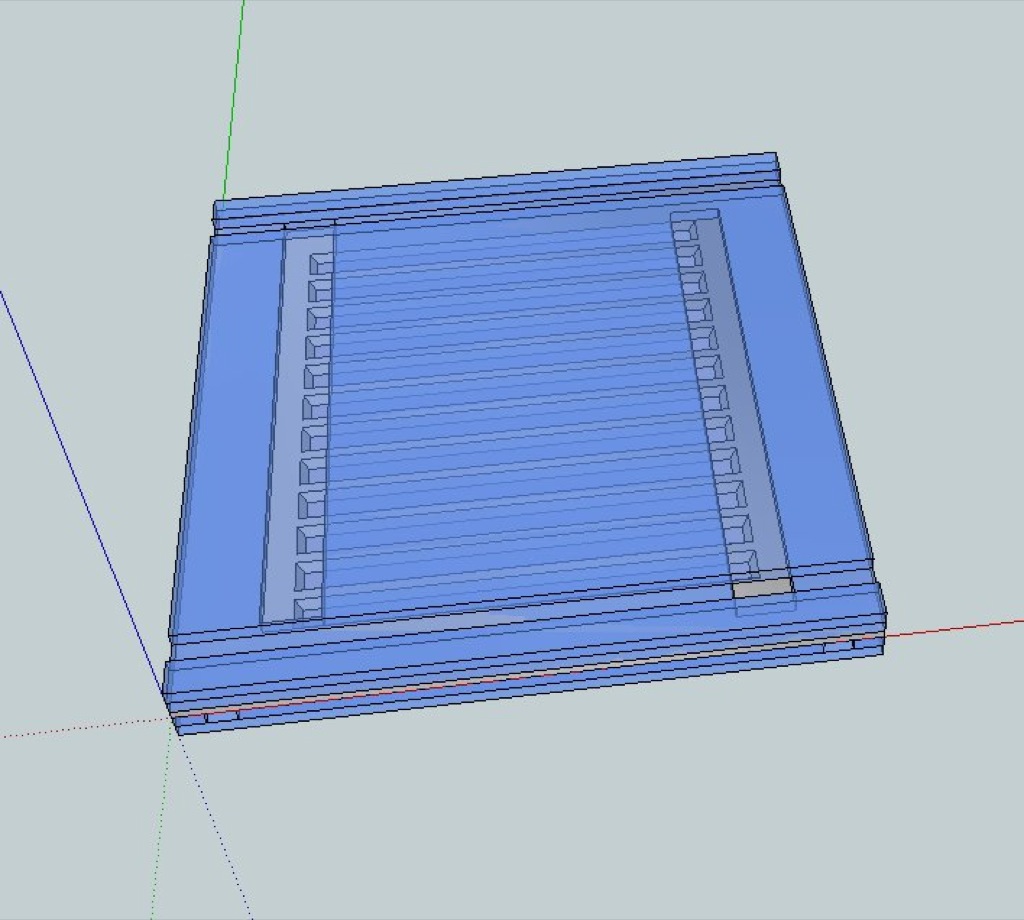

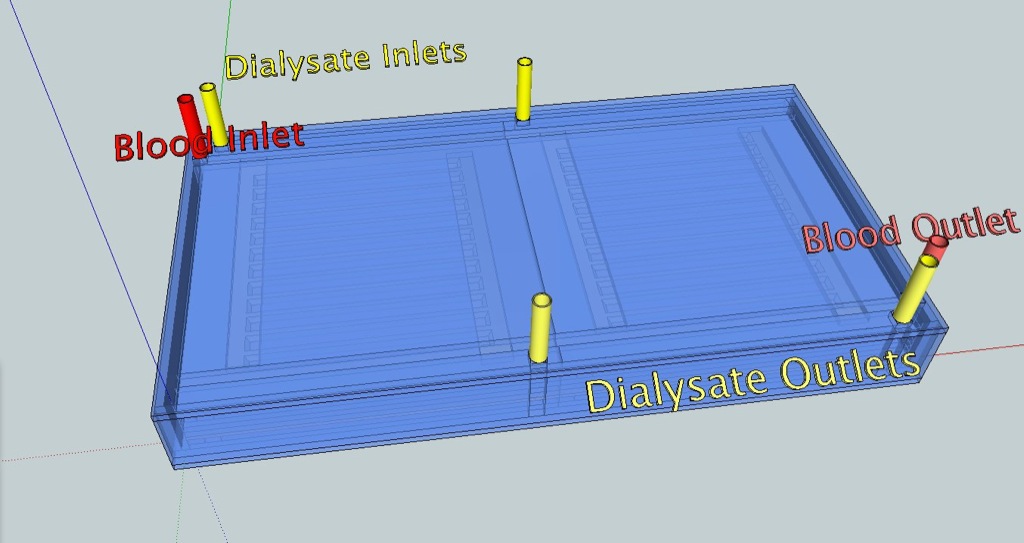

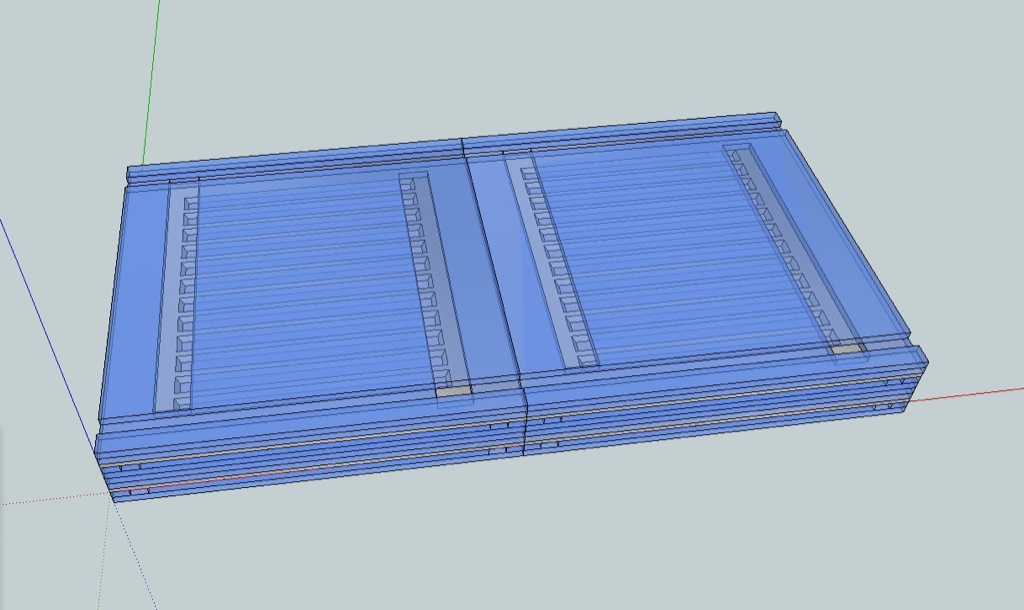

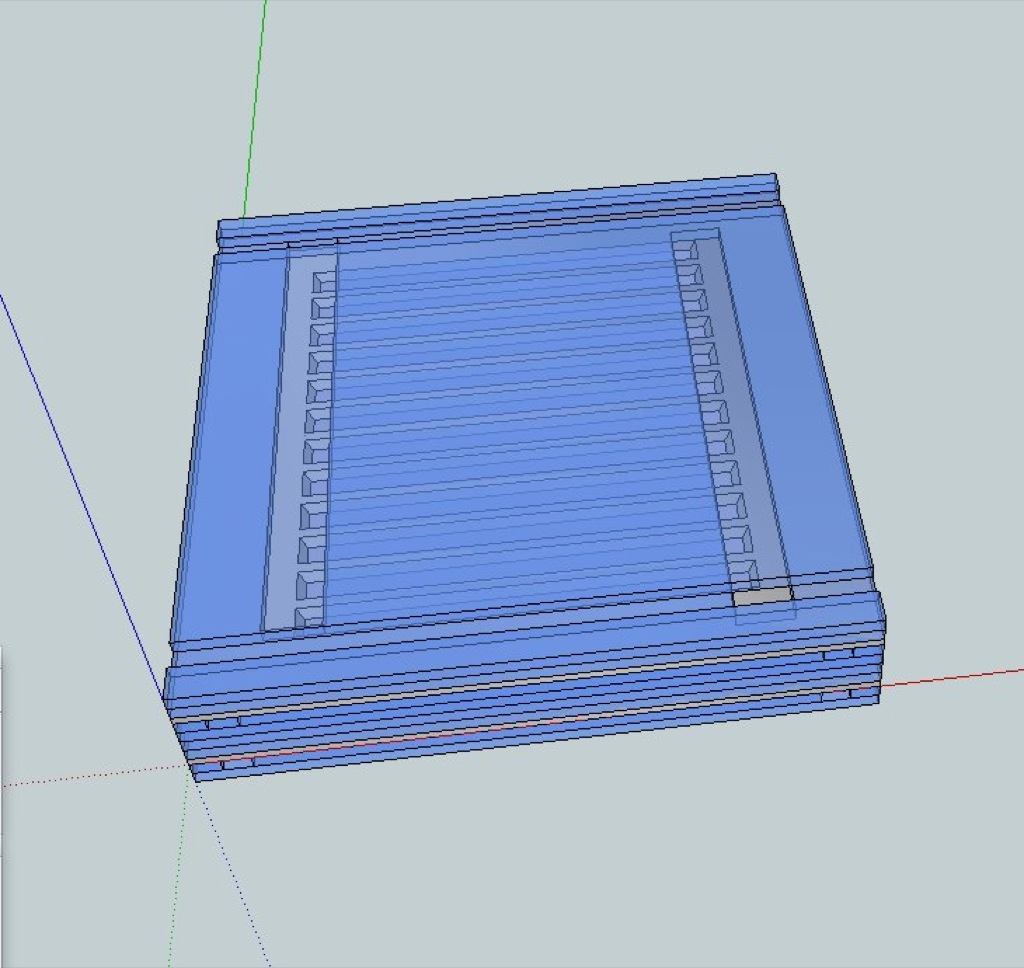

While my focus will be on packaging a single multi-channel chip device, I have captured here an initial concept for packaging multiple channels. The technique required is the application of verticle PDMS structures to direct blood and dialysate to and from the stacked levels of chips.
