The permeability data is very different for films deposited at room temeperature and 400C.
The 400C deposited wafers have much higher permeability and more consistent.

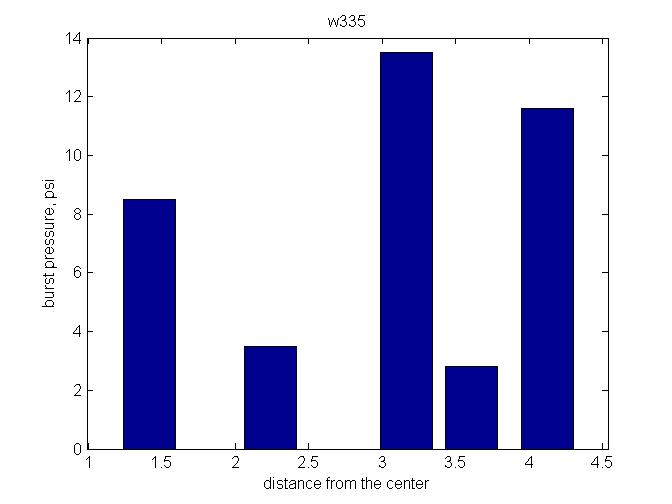

w335 – RT
w336-RT

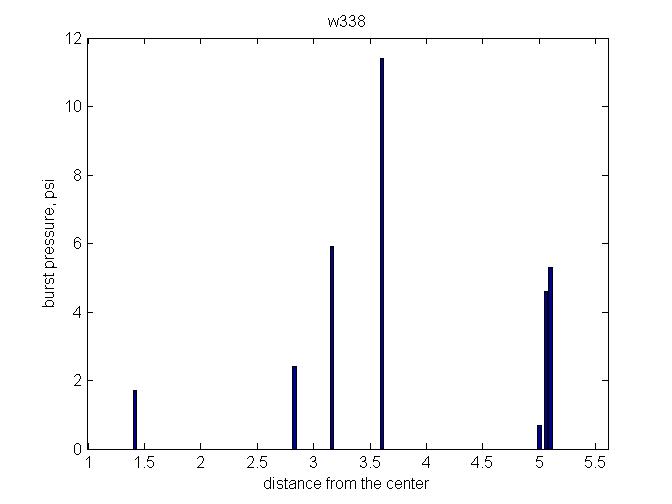

w338 -400C

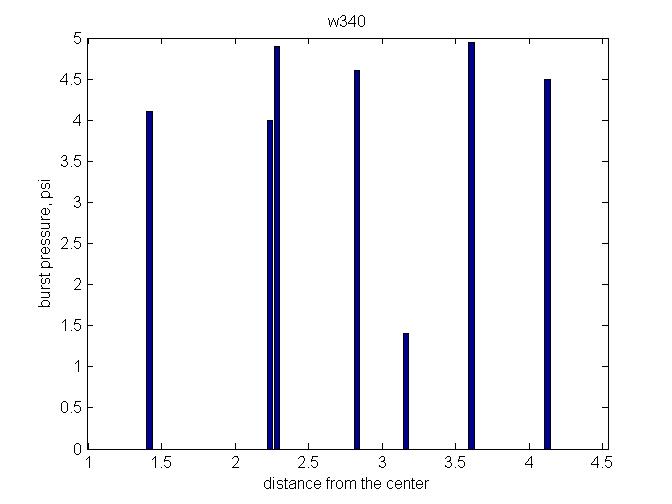

w340 – 400C
Burst Pressures
