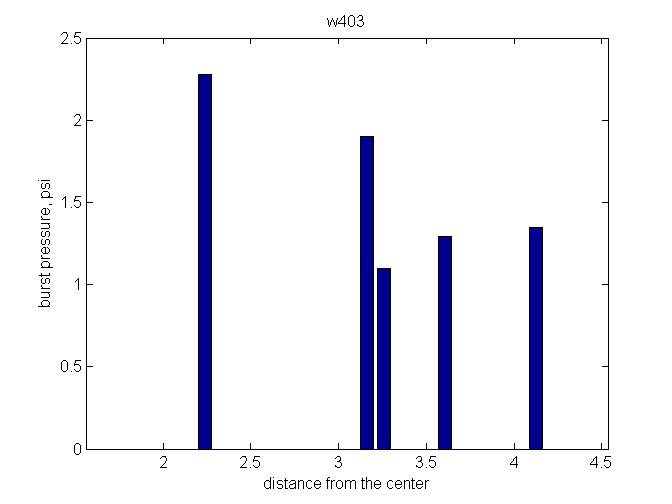

These are low burst results but samples have lots of pinholes on them many of which are on the edges.

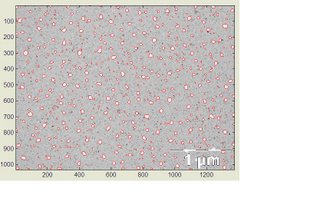

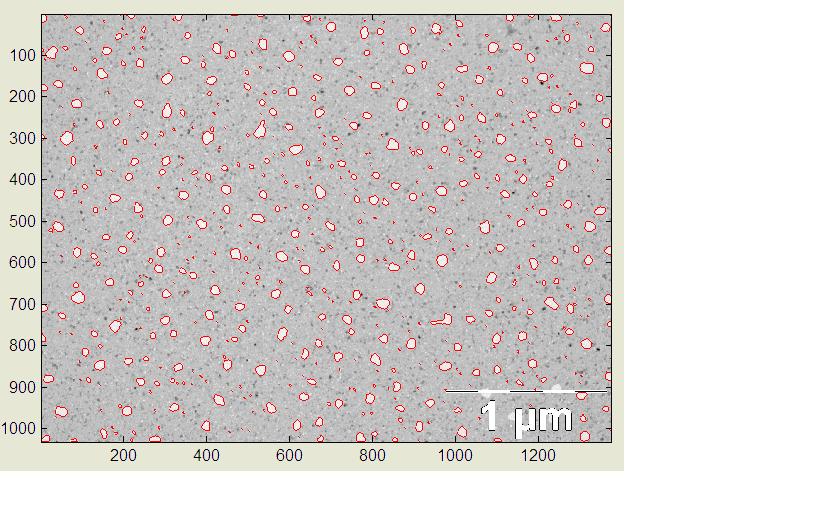

I also checked porosity of the wafers 338 and 340. They indeed have porosities close to 7%.
Wafer 340 (0,5) 0.0656 porosity
