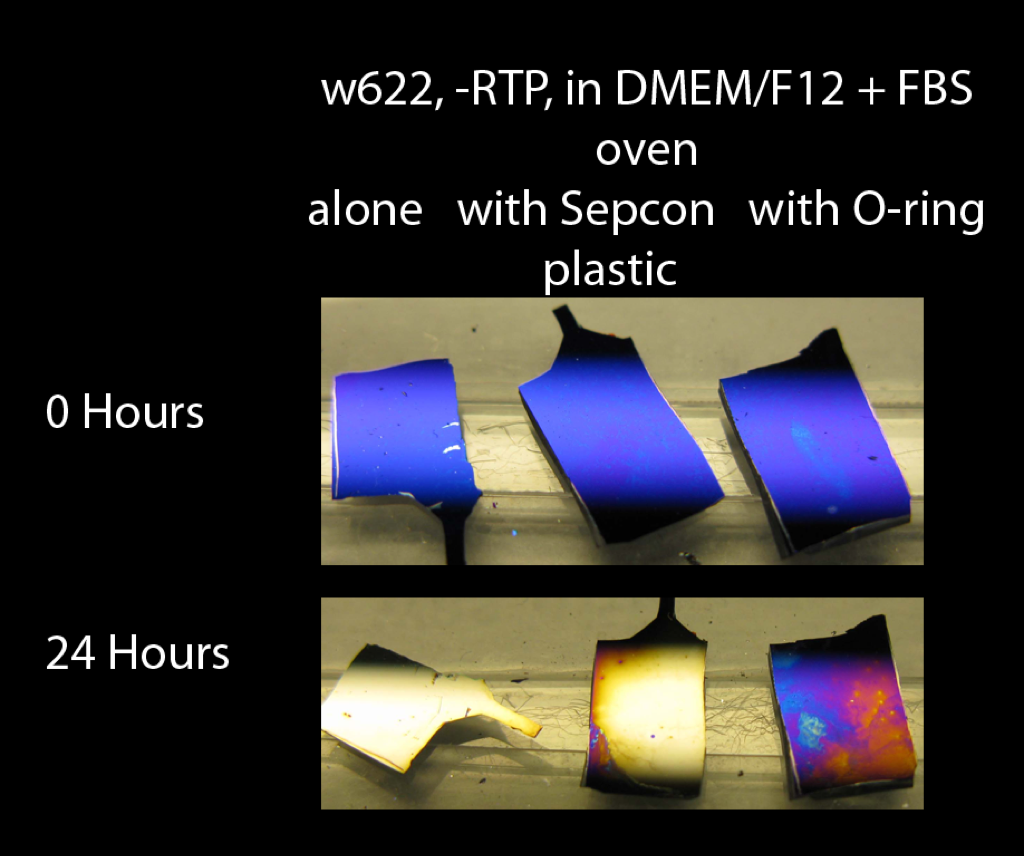

Since we’ve been noticing slower discoloration in the Sepcon format, I looked at the 2 components of Sepcons – the plastic and the O-ring. Specifically, I cut pieces from w622 and incubated them in FBS-DMEM/F12 either alone, with the Sepcon plastic or with an O-ring. This was in the oven, and the chips were membrane side up.
The chip by itself and with the Sepcon plastic discolored at the same rate. The O-ring slowed discoloration slightly.
In most of the images I’ve posted of bEnd3 on pnc-Si, it seemed like there were more cells crowded onto the free-standing pnc-Si compared to supported pnc-Si. This post shows that this is indeed true. To do cell counts, I stained cells with Hoechst 33342 (1uM in media) for 15 minutes @ room temperature and…
Summary of Results Membrane Pore Diameter Thickness Porosity Permeability (cc/cm^2*min*bar) SiN 3.2-4.0 um 0.12 um 22.1%-35.3% 30000 PCTE 2.4-3.0 um 9 um 11.9%-16.1% 1652 SiN Experimental Design Permeability of the 3 um pore Si Nitride membranes was assessed using the pictured apparatus: Fluid (ultrapure water) was pumped at a constant rate into a pipet whereupon…
HI everyone, We continued working with Henry and Greg, gaining expertise on building chips and print-cutting channels. Right now we have a bunch of chips made, some have been tested, and we have completed one of our objectives : To produce chips for teaching. We also had our mask made and we will be…
Introduction & Background Parylene is a polymer stemming from the chemical-vapor-deposited poly(p-xylylene) group. This polymer treatment is applied as a gas which allows complete and uniform coatings of substrates with even nanoscale features. Parylene treatment is widely used as it offers a chemically and biologically inert layer with excellent electrical properties, and additionally acts as…
I did a small experiment to demonstrate that a carbonized membrane would be stable in a harsh alkaline solution, such as KOH. I soaked a carbonized membrane and untreated membrane in %5 KOH at 40 C for an hour in an oven. As you can see, the carbonized membrane is still in-tact and the untreated…
To supplement our upcoming manuscript, we decided that we needed to provide a visual of how thin our ultrathin SiO2 membranes actually are. To demonstrate the thinness of the SiO2 membranes, in comparison to the commercially available Track-Etched hanging membrane inserts, we performed a co-culture using 0.5µm high porosity SiO2 membranes (thickness ~0.1-0.3µm) and 0.5µm…
Comments are closed.
Do you think this will be reproducible? I have no idea why an oring would interact with the solution to slow discoloration…
