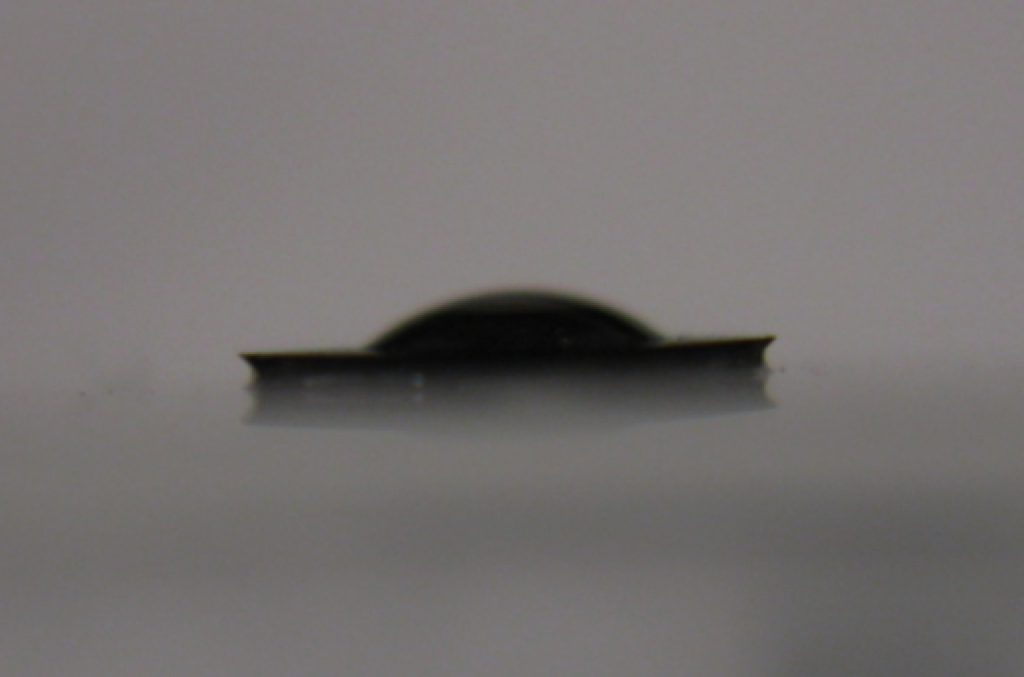

We’ve built a set up for this but it’s not incredibly user friendly right now. It consists of a camera and a stage. Using the macro function of the camera you can take a close up image of the chip, but you must make sure the horizon line is straight i.e. camera and stage are in same plane.

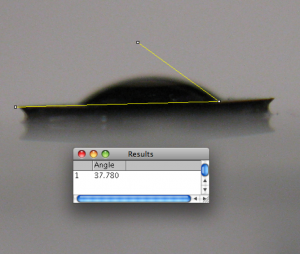

The angle function in ImageJ can be used to find the contact angles.
