Urea Clearance: First Animal Study Results

ByDean Johnson

BOTTOM LINE: We had great results from the small number of nanoporous membranes used to clear urea from Sprague-Dawley rats. We are clearing Urea better than commercial materials. (see fig)

Recap of previous work:
First we leaned how to set up the dialysis experiments using Sprague-Dawley rats.
We made some rats uremic to elevate the uremia levels.
Then we did sham dialysis with non-porous nitride membranes.
The Studies with non-porous membranes showed that we could raise the urea level of the animals and perform four hours of dialysis without distressing the animals. (beyond making them uremic, which brings on weight loss and causes the animals to look ‘ruffled’)

We then dialyzed rats using commercial membranes of both Polyethersulfone (PES)and Cellulose triacetate (CTA) and nanoporous nitride membranes from SiMPore. These chips had the narrow slots and no vias. As a reminder, blood is pumped from the femoral artery, via a peristaltic pump, through our membrane device, and back to the animal by way of the femoral vein. Blood samples are taken from the femoral artery at the start then every hour for the four hour treatment/experiment. The urea levels measured by the colormetric assay is the blood urea level of the animal, not the urea in the blood exiting the dialysis device. This is how we determine KT/V which equals ln(C0/C), where C0 is the initial urea concentration and C is the current urea concentration.

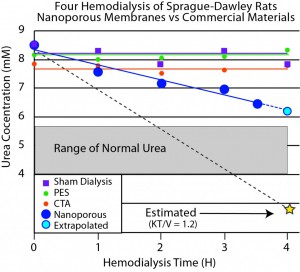

Sham Dialysis, Commercial materials (PES, CTA), and nanoporous nitride (SiMPore) are compared. 4-hour dialysis using equivalent nanoporous membrane area is estimated.
Sham Dialysis, Commercial materials (PES, CTA), and nanoporous nitride (SiMPore) are compared. 4-hour dialysis using equivalent nanoporous membrane area is estimated.

The graph may be clearer if I normalized each membrane type by the starting urea concentration, but it is evident that the sham dialysis, purple, and both commercial membranes, green (PES) and orange (CTA) had no affect on the urea concentration in the animal. The nanoporous membranes, blue, on the other hand reduced the urea substantially. There was a problem with the mambrane at 3.5 hours and the hour four data is extrapolated. The dotted line to the star shows the expected clearance if the area used for the commercial membranes had been used for the nanoporous membranes. This would give us the clearance of a typical in-center dialysis treatment, KT/V = 1.2.

Rats are 500x smaller than humans. A blood flow rate of 0.5 mL/min for a rat is therefore equivalent to 250 mL/min for a human. This is less than the flow rate for in-center hemodialysis (300 mL/min to 500 mL/min) but of the same order of magnitude.
The Yamimatsu paper that we modeled our rat work off of used 1,000 x less membrane area than would be used on a person in a dialysis center and saw reduction with commercial membrane material.
But for the commercial membranes in our study we used 10,000 x less membrane area than one would use for a human and we found that the commercial membranes did not clear urea. We would have to have much more area of commercial membranes to see an effect.
The point is, we cleared urea with very little membrane surface. Even though our small area membranes didn’t achieve KT/V of 1.2, we  did reduce urea to near normal levels, and with the area equivalent of the commercial membranes (an increase of about 4) we would easily be able to achieve the goal of 1.2.
With lift off of nitride membranes, we could easily increase the area sufficiently.
Our next steps are to design bench top experiments to explore the removal of urea and middle-weight molecules (ß2-µglobulin, phosphorous) and ultrafiltration before designing more sophisticated animal (rats) studies. Eventually we will move on to larger animals (sheep) or undergrads.
