Wafer #240803-12 – 1 Slot NPN
Manufacturer’s Data
- Delivery Date: 12/18/2024 (picked up and logged by Ahmet Gurcan)
- Membrane Type: NPN 1 Slot
- SKU: NPSN100.C-1LZ.0
- Lot Number: 240803-12
- Quantity Received: 320
- Manufacturer Test Report:
- Pore Size: 50.5 nm
- Porosity: 11.6
- Flow Data Avg in SLPM
- 2psi: 0.16
- 4psi: 0.307
- Burst: 4.919
UR Testing
- Porosity: 9.99%
- Pore size: 50.62 +/- 14.61 nm
- Pore morphology: Standard
- EDS: N/A
- 3 Membranes from this lot were removed for QC measurements.
- Chip and Membrane Appearance – (Box-Folder: https://rochester.box.com/s/ro0mh943ni6e7yapsw8e6glq3uk52e3u).
- Membrane dimensions (flat surface): 0.7 mm x 2 mm

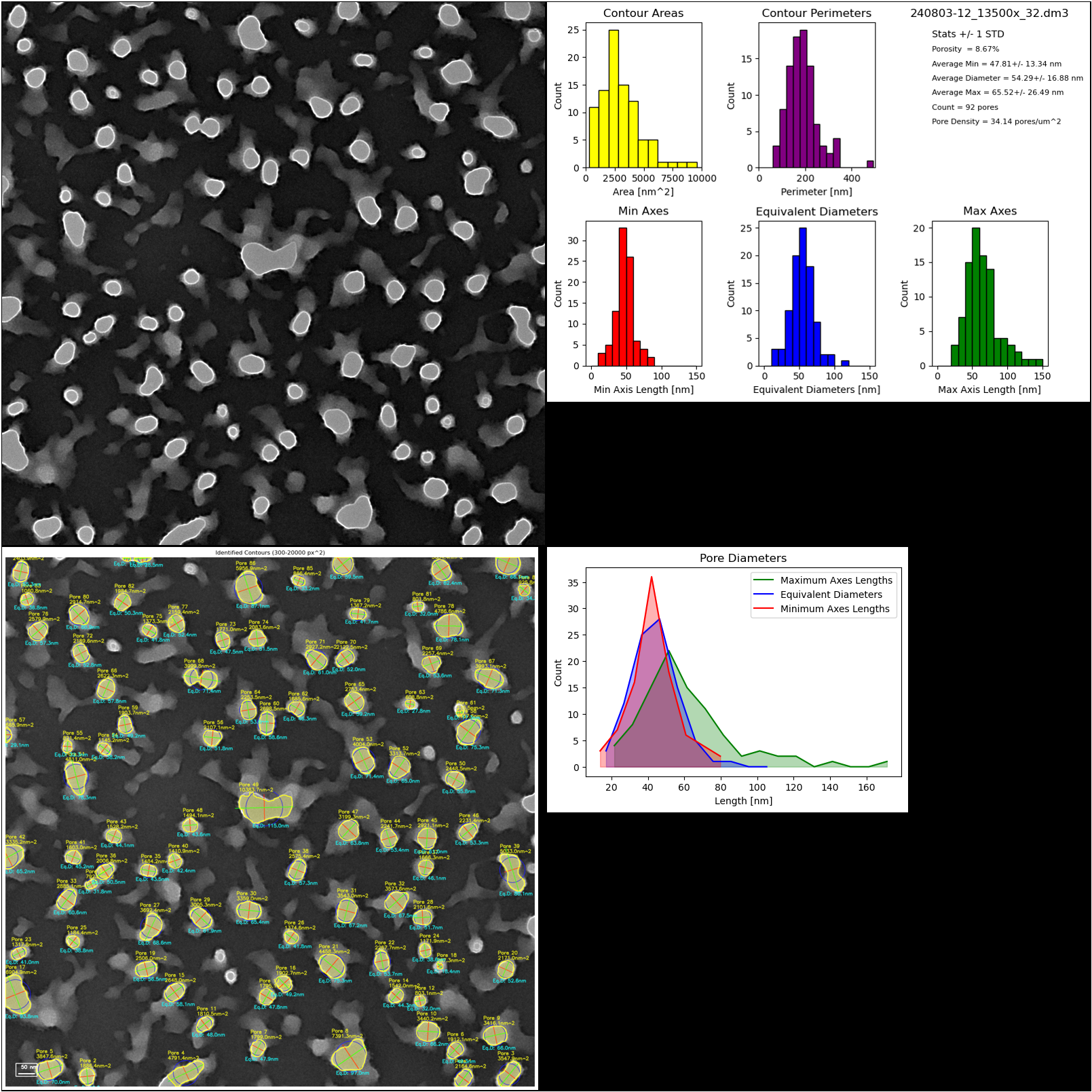

- Representative membrane Image: See Below.
